HP Robots | Otto Starter - Creator Kit

The Otto Creator Kit contains all the electronic components you need to build an Otto robot and is the ideal kit for 3D printer owners, because the plastic parts are not included.

Ideal for children over 8 years, Otto takes students from designing and 3D printing, to building and programming a fully functional robot. Otto is straightforward to assemble, with no soldering required.

Since you are 3D printing the plastic components, you can customize everything from functionality and colors to style, making your HP Otto unique.

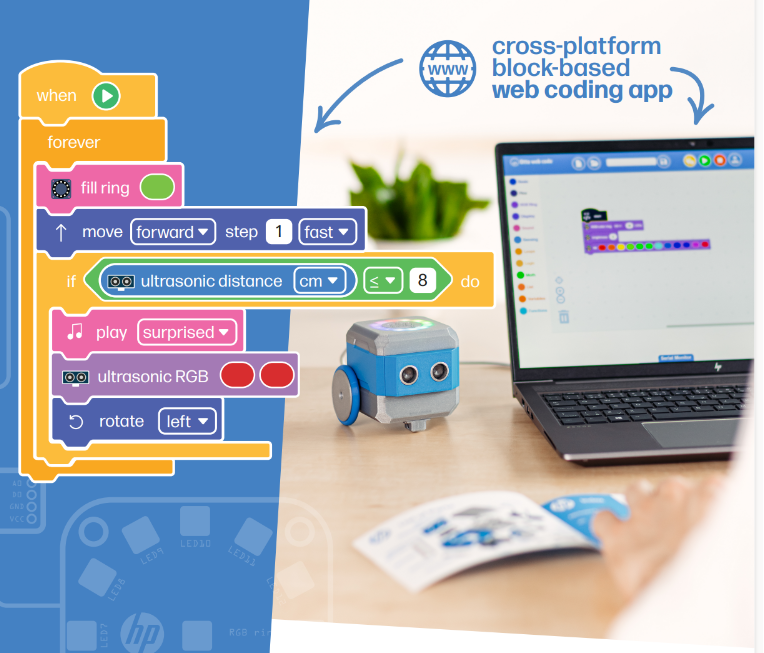

Once you've created the components and assembled the robot, you can easily code with our user-friendly block-based web app or mobile app. Younger students can use our image-based coding with easy drag-and-drop icons. Slightly older students can create programs using drag-and-drop Scratch-style blocks and older students can transition to text-based coding.

Technical Specifications:

• MCU: Xtensa®Dual core 32 bit LX6 microprocessor.
• Clock speed up to 240 MHz.
• Memory 8MB flash.
• Wi-Fi® connectivity 2.4 GHz.
• Bluetooth® v4.2 and BLE Bluetooth Low Energy.
• 11 GPIOs for external electronic modules.
• 3 x 4pin + 8 x 3pin universal JST connectors.
• On board Buzzer 80dB Passive electromagnetic type.
• Slide on/off master switch and tact switch for mute.
• Reset and Boot buttons.
• 4 blue LEDs battery level indicators.
• On board charger and 5V voltage booster.
• Single USB-C port for charging and programming.
• Lithium battery (included) 3.7V 1800mAh replaceable.
• Playtime ≈ 2 hours, fast charging.
• Infrared sensors detect black and white contrast.
• Ultrasonic distance range: 1- 400cm with RGB LEDs.
• 13 x Addressable RGB LED lights.
• 2.2kg/cm torque continuous rotation servo motors.

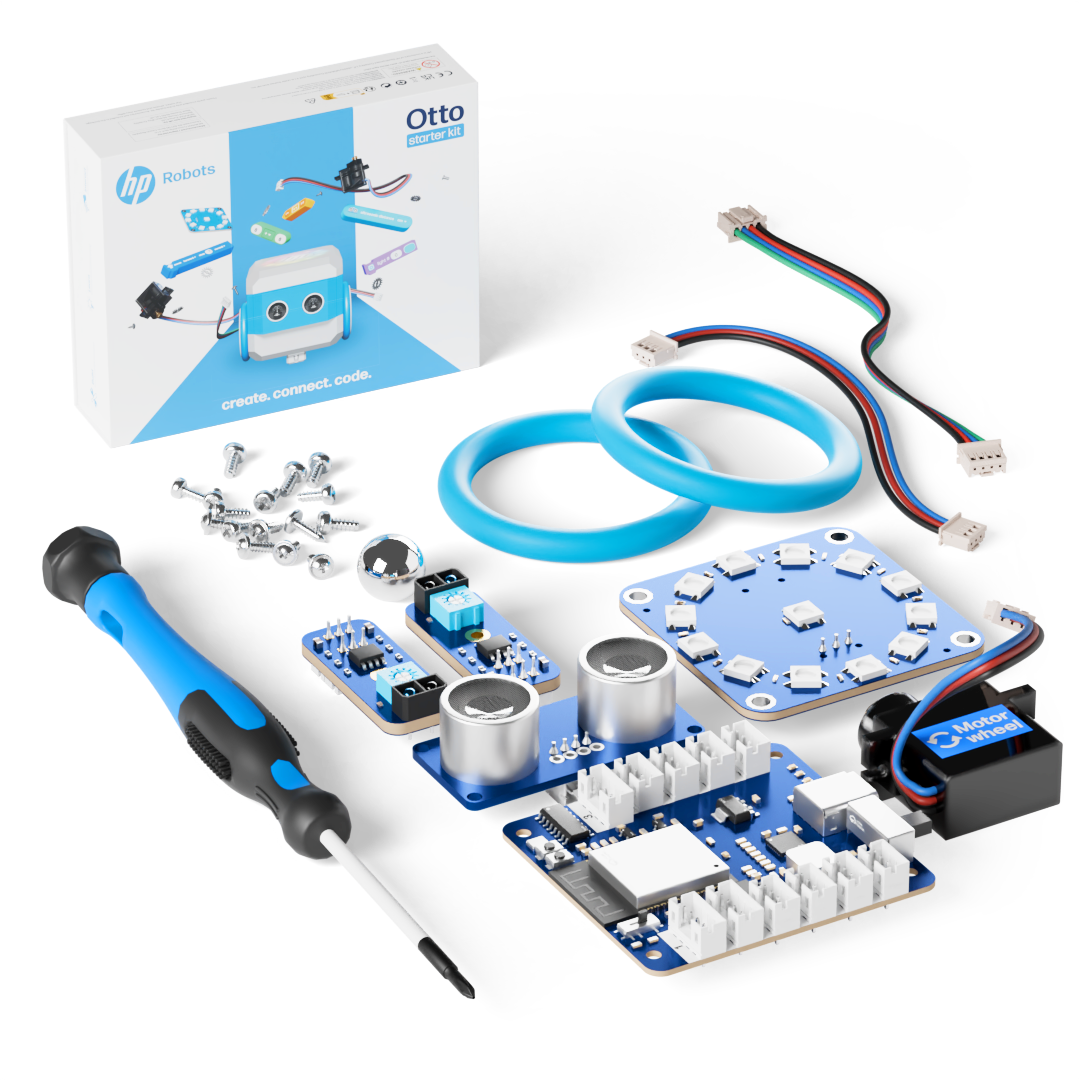

What's Included

• Custom circuit board with Bluetooth and Wi-Fi.
• Rechargeable battery with USB-C cable.
• Integrated buzzer.
• Tailor servo motors with metal gearbox.
• Fast and easy to plug connectors.
• RGB colorful lights and glowing eyes.

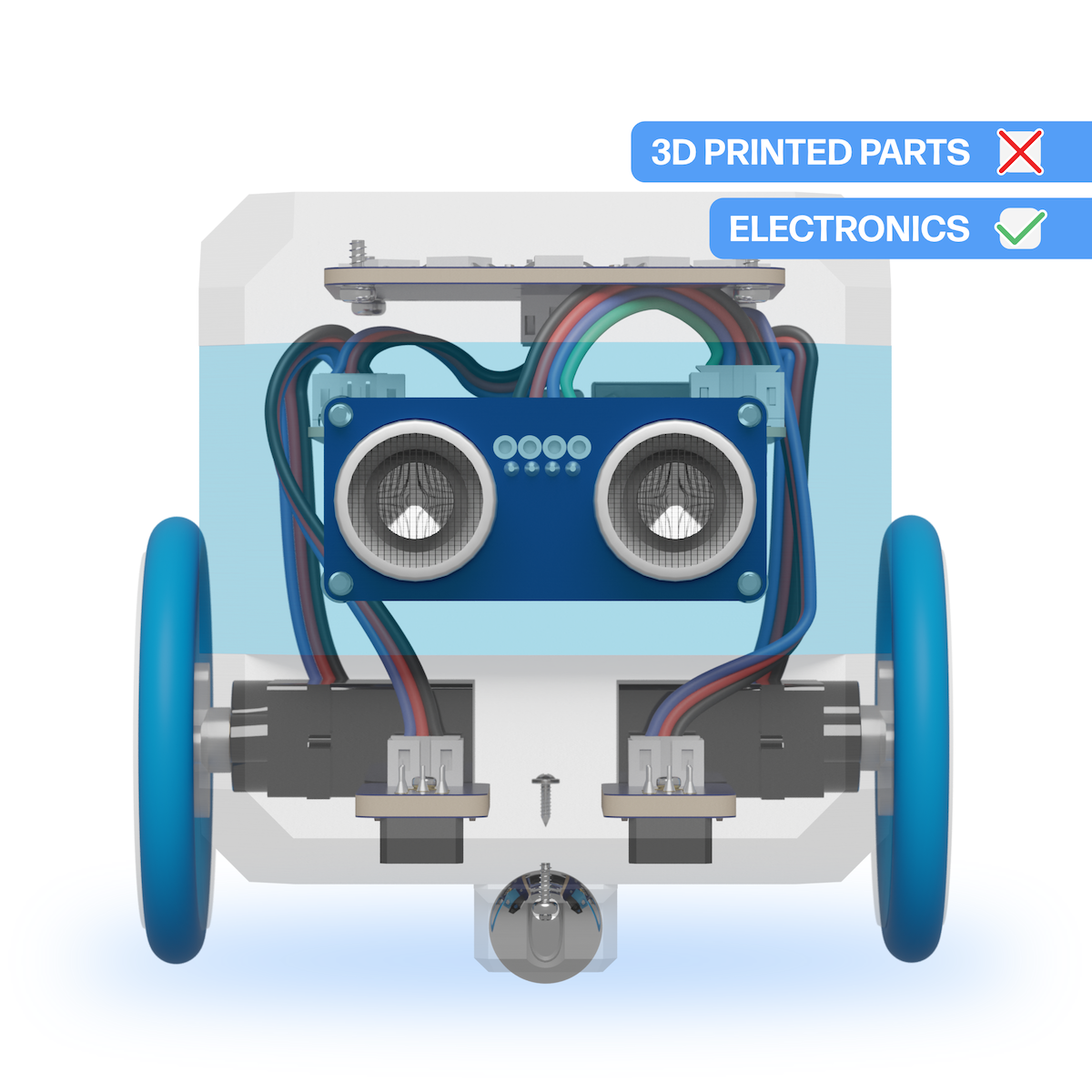

Otto Starter - Creator Kit requires a 3D printer. All electronic components and tools are included.
